车辆油耗管理系统 Vehicle Fuel Consumption Monitoring System
油耗管理系统 Fuel consumption monitoring system
FCMS系列油耗管理系统是用于记录与分析车队中所有车辆的燃油消耗状况的。该系统包括车载油耗记录仪及油耗分析管理软件。车载油耗记录仪安装在车队的每一辆需要纳入油耗管理的车辆上,它将记录该车辆与油耗相关的实时原始数据,包括行驶里程,耗油量,有没有加油,加油的次数与升数以及加油发生的时间与里程,是否有异常的油耗,若有异常油耗(损)则会记录发生的时间、里程及损失的升数。所有这些原始油耗数据将被记录并在之后采集传递至运行油耗管理分析软件系统的PC机上进入数据库保存。上述原始数据是不可人为改动的。每辆车、每位司机都会各自的数据。分析与统计软件会进行油耗的分析与统计,既可以对单台车辆,也可以对单个司机进行,即使是若干司机分时开同一台车也一样可以对他们各自的耗油状态进行分析。所有统计报表都可以由系统自动生成,统计可以是对一台车,一个车队的车辆,或是整个公司的所有车辆来进行。该系统的一个特点是所有统计数据都是基于实际监测数据由机器自动生成的,不可以人为改变。
FCMS series fuel consumption monitoring system is designed for recording and analyzing fleet vehicle fuel consumptions. The system contains on-vehicle fuel recorder and fuel consumption analysis software package. On-vehicle fuel consumption recorder on each vehicle will record all fuel related real time raw data, including mileage travelled, fuel amount consumed, if fuel filling up occurred and how many liters filled, if abnormal fuel loss occurred or not and at what mileage and when. All above said raw data will be stored and later transferred into a PC that is running the fuel consumption analysis software. Nobody can perform any change on these raw data. Each vehicle, even each driver, will have its (her/his) unique data. Analysis and statistics softare will perform fuel consumption analysis and statistics for each vehicle and each driver. All necessary statistics tables will be generated automatically. In addition, statistics can be done against each department and a company as a whole. A distinctive feature of this fuel monitoring system is that all results are fact-based with no possibility of human intervention.
油耗管理系统 Fleet fuel consumption analysis system
车用油耗管理与统计软件系统使用SQL数据库或Access数据库(小型系统)进行数据的存储,它可用于整个车队、公司的所有车辆燃油消耗状态的管理与分析。原始数据取自安装在每一台车上的车载设备并与车辆标识及司机标识一起保存到数据库中,上述过程是通过接口硬件在软件支持下自动进行的。通过这个油耗管理系统,用户可以得到许多各类的统计报表,包括已经运行的里程、燃料的消耗量、节油(或费油)数量等,这些数据的统计可以是对每一台车或每一位司机进行的,也可以是关于某一个车队、某一个分公司或整个集团的所有车辆来做。由此可见,用户可获得诸如跑了多少千米、耗了多少升燃油等客货运公司运营成本的基础ERP数据。本系统将使得这些数据的统计更加准确与容易,且是自动化的。
This fuel consumption analysis system is based on SQL server or Access database engine. It can be used to monitor a whole fleet of vehicle. Raw data from each vehicle will be automatically stored in database with vehicle and driver tags. This can be done automatically with data from on-vehicle recorder. User can request many different types of statistics data tables, include mileage, fuel consumption, fuel saving et al for each vehicle, each driver, each department, or a company as a whole. So you can have such ERP data as how many miles run, how many liters of fuel consumed. Those data are crucial for personnel or material transportation companies. This system will make those data much more accurate and almost effortless.

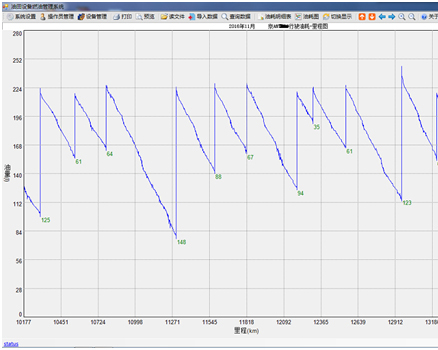

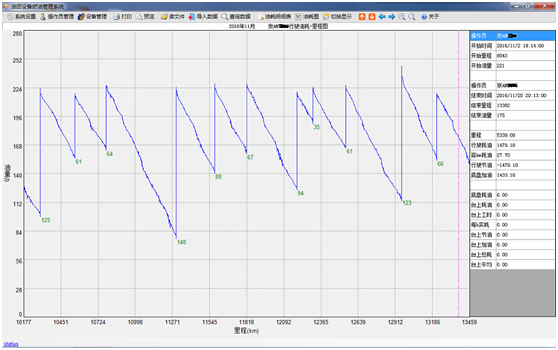

1) 油耗-里程关系图

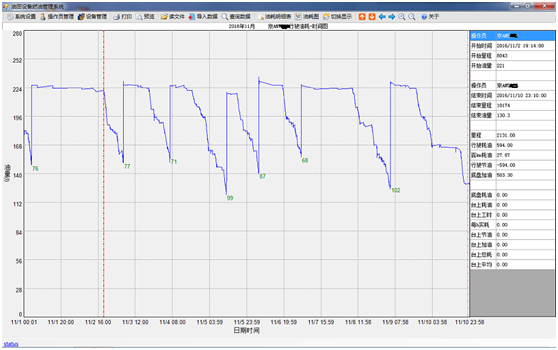

2) 油耗-时间关系图

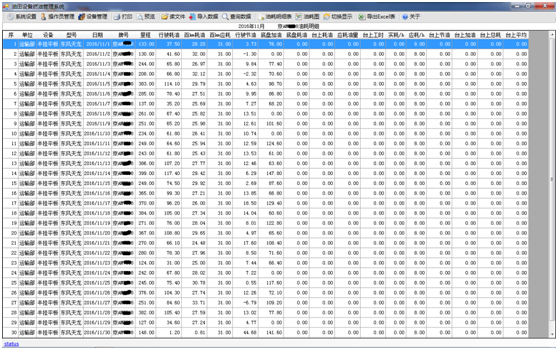

3) 车辆油耗月明细表

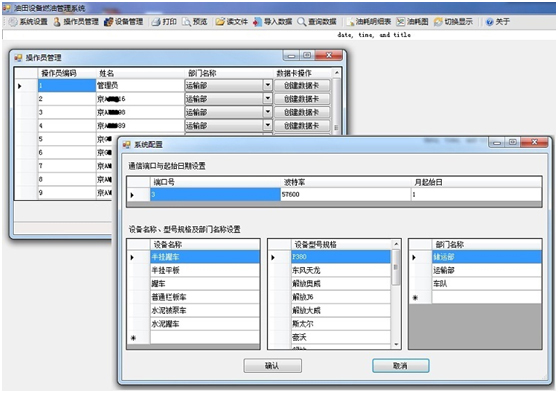

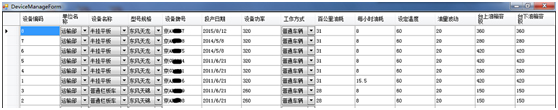

4) 车辆、司机管理及系统设置等
