车辆油耗管理系统 Vehicle Fuel Consumption Monitoring System
油耗管理系统 Fuel consumption monitoring system
FCMS系列油耗管理系统是用于记录与分析车队中所有车辆的燃油消耗状况的。该系统包括车载油耗记录仪及油耗分析管理软件。车载油耗记录仪安装在车队的每一辆需要纳入油耗管理的车辆上,它将记录该车辆与油耗相关的实时原始数据,包括行驶里程,耗油量,有没有加油,加油的次数与升数以及加油发生的时间与里程,是否有异常的油耗,若有异常油耗(损)则会记录发生的时间、里程及损失的升数。所有这些原始油耗数据将被记录并在之后采集传递至运行油耗管理分析软件系统的PC机上进入数据库保存。上述原始数据是不可人为改动的。每辆车、每位司机都会各自的数据。分析与统计软件会进行油耗的分析与统计,既可以对单台车辆,也可以对单个司机进行,即使是若干司机分时开同一台车也一样可以对他们各自的耗油状态进行分析。所有统计报表都可以由系统自动生成,统计可以是对一台车,一个车队的车辆,或是整个公司的所有车辆来进行。该系统的一个特点是所有统计数据都是基于实际监测数据由机器自动生成的,不可以人为改变。
FCMS series fuel consumption monitoring system is designed for recording and analyzing fleet vehicle fuel consumptions. The system contains on-vehicle fuel recorder and fuel consumption analysis software package. On-vehicle fuel consumption recorder on each vehicle will record all fuel related real time raw data, including mileage travelled, fuel amount consumed, if fuel filling up occurred and how many liters filled, if abnormal fuel loss occurred or not and at what mileage and when. All above said raw data will be stored and later transferred into a PC that is running the fuel consumption analysis software. Nobody can perform any change on these raw data. Each vehicle, even each driver, will have its (her/his) unique data. Analysis and statistics softare will perform fuel consumption analysis and statistics for each vehicle and each driver. All necessary statistics tables will be generated automatically. In addition, statistics can be done against each department and a company as a whole. A distinctive feature of this fuel monitoring system is that all results are fact-based with no possibility of human intervention.

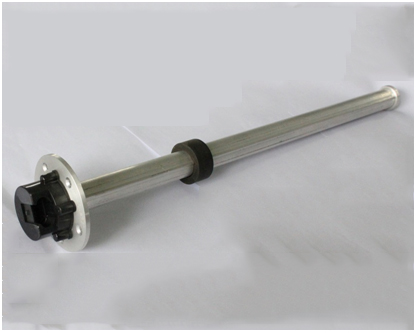

线性液位传感器 Linear fuel level sensor
易辰电子设计生产的这型专利线性液位传感器是一个电气全隔离、低功耗、低压型传感器,经过了防爆本安认证。传感器的输出与被测液位成严格线性关系。传感器的标准精度是1% FS,可以为用户定制不同精度、不同量程以及不同安装法兰的特殊规格。
This patented fuel level sensor is fully electrically isolated, low power, low voltage. It is certified to be used in explosive environment. It can generate accurate output, which is linearly proportional to fuel level. Standard accuracy is 1% FS. Esense also supplies this serious of sensors based on customized specifications, not only on accuracy, but also on working range and installation method.
