电动滑板车(轮椅)电子控制组件 Electrical (Wheelchair)Scooter electronics
易辰电子设计并生产现代电动车驱动所需要的整套电子控制组件。我们设计生产的产品是全数字化操作方式,具有高可靠性与智能化的特点,非常有助于提升电动车的可靠性与安全性。安装到整车上的所有电子控制部件都在德国的TüV实验室通过了认证试验。安装有这些电控部件的电动车在全球范围内销售。具有国际领先地位的花很医疗器械厂家Sunrise Medical是我们的主要客户之一。
Esense design and manufacture a complete set of electronics applicable to modern electricity-driven scooters. Digital operating modes make our products reliable and intelligent, which will make scooters reliable too. All products, installed into scooter, have passed TuV certifications at Germany. Scooters, equipped with those electronics, are sold globally. Word-leading medical device manufacturer, Sunrise Medical, is among our customers.

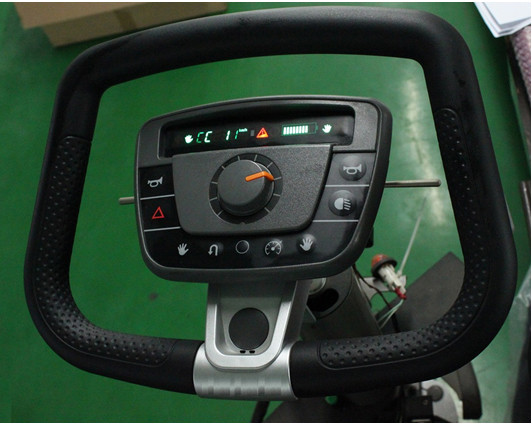

集成电动车方向盘组件 Integrated Steering Wheel
该方向盘组件包括了钢制方向盘架,加速器,转向开关,速度设定开关,面板显示屏,手刹以及紧急停车开关等。主要功能有:
It is a scooter steering wheel assembly, which include steering wheel framework, driving throttles, indicator switches, speed limit switch, console screen, brake, and emergency stop switch. Main functions are:
方向盘架 Steering wheel framework
PU包覆的无缝钢管结构保证了方向盘的强度、舒适性及漂亮外观,驾驶人用它来对电动车进行操控,同时它也是许多其它部件的安装基座。
PU wrapped seamless steel pipe structure presents strength, comfort, and style. It is used to steer the scooter as well as the holding base for all other console parts.driving throttles
我们设计生产的电动车方向盘组件有两个手动加速器安装位,使不同手臂有残疾的残障人士一样可以使用与可靠操作。加速器控制电动车的前进与后退,加速与减速。结合速度设定开关,驾驶人可以在整个速度控制范围内(0km/hr~15km/hr)很轻松地控制期望的车速。若是想要停车,唯一需要做的是释放加速器,电动车会自动受控停车。one or two throttles can be installed at either side or both. This design will ease potential harassments for those handicapped with inability of one hand. Throttles are used to control scooter’s speed and direction. Along with speed limit selector, drivers can easily control the movement of the scooter in whole speed range, from 0km/hr to 15km/hr. if one wants to stop the scooter, he or she can simply release throttle and scooter will automatically come to a controlled stop.
速度设定开关Speed limit selector
速度设定开关是一个十分便于操作的旋转开关,驾驶人用它来限制电动车最快行驶速度。这个机制为残障与年迈人士提供了直观的速度控制方式。speed limit selector is an easily accessible rotary switch for driver to set expected speed limit for his or her scooter. This is an intuitive way for elder or handicapped.
转向灯开关 Indicator switches
方向盘两边各安装有一个长柄转向灯拨动开关,它们的联动的,驾驶人拨动任何一个开关都可以发出左转向或右转向指令。
long handle indicator switches can be readily accessible for drivers to show his or her intention to make turns. Two switches are installed with each one can control indicators to both right or left.
控制台显示屏 Console screen
控制台显示屏用于给驾驶人提供信息反馈。显示的内容包括电动车行驶速度,里程,剩余电池电量,转向灯,危险倾斜警示、各类故障指标等等。
Console screen gives feedbacks to driver. Displayed are scooter speed, mileage, battery capacity, indicators, hazardous slope warning, and error state indications, el al.
刹车 Brake
方向盘组件可以配置手刹,用于制动电动车。
Steering wheel assembly can equip a brake switch, used to stop the scooter.
紧急停车开关 Emergency stop switch
在任何情况下,若出现紧急情况需要停车,总是可以通过按下急停开关来中止电动车的运动。紧急停车开关具有自锁功能,除非人为解除,不然车辆将一直保持静止。
Under any situations, if there is whatever emergency, one can always stop the scooter’s movement by press down the emergency stop switch. Unless it is intentionally released and restarted, the scooter will stay still forever.
